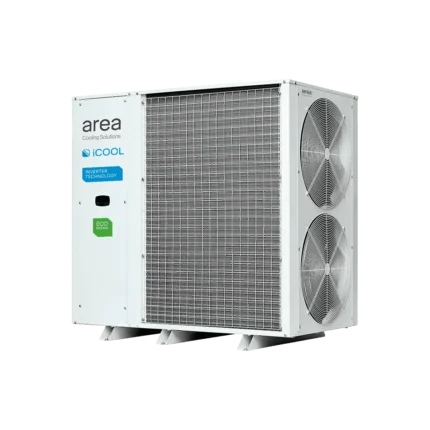

Inverter condensing unit Area iCOOL MAX 26 MHP

Name: Inverter condensing unit Area iCOOL MAX 26 MHP
SKU: Area-iCOOL - MAX 26D MHP inverter-2

technical-brochure-max-G2-G3-pl-en-nd18

Compare

Add to wishlist

Artikelnummer: Area-iCOOL - MAX 26D MHP inverter-2 Categorie: Aggregaten Tags: inverter, Silence unit, silent

Beschrijving

Inverter condensing unit Area iCOOL MAX 26D MHP

A condensing unit with minimal environmental impact due to the energetic efficiency of its Inverter technology, the Area iCOOL MAX-26D MHP is a highly versatile component presenting first-rate thermodynamic properties. Capable of performing high levels of cooling capacity with minimal energy consumption, it is an ideal condensing unit for medium to large-scale commercial applications such as refrigerated depositories, storage rooms, refrigeration cabinets, and liquid coolers, among other cooling installations. With reduced energy losses in contrast to traditional condensing units, our iCOOL series is a global reference for inverter units featuring multi-refrigerant compatibility and simple installation and maintenance processes.

technical-brochure-max-G2-G3-pl-en-nd18

Aanvullende informatie

Power supply	380/415 V-50 Hz-3 ph
Weight	400 kg
width	745 mm
length	1327 mm
height	1677 mm
Suction connection	35 mm
Liquid connection	22 mm
Suitable compressor model	C-SBVN373L0B, C- SBN453H8G
Type of oil	FV68S
Air flow	9500 m3/h
MCC	17.5/13.8 A
Receiver volume	15 dm3
Number x Diameter of fan	1 x 560 mm
Refrigerant	R134a
Certificates	CE, REACH, RoHS, TUV
Technology	Inverter
