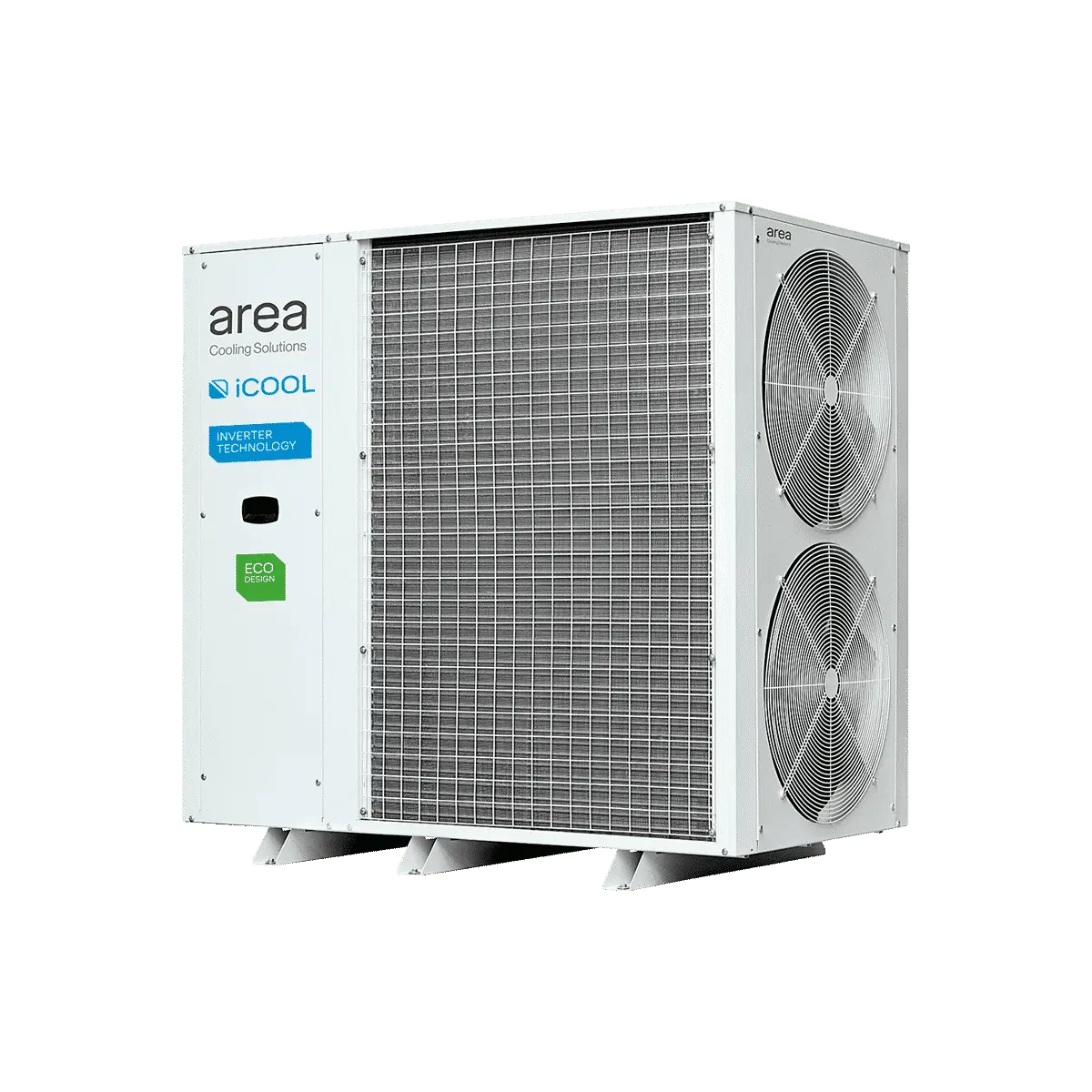

Inverter Condensing unit iCOOL-17D MP

Name: Inverter Condensing unit iCOOL-17D MP
SKU: Area-iCOOL-17D MP

Inverter condensing unit Area iCOOL 17D MP

The Area iCOOL-17D MP is a highly performing condensing unit featuring Inverter technology, adequate for medium to large-scale commercial and industrial operations, such as refrigerated storage rooms, refrigeration cabinets or liquid coolers, among other installations. With a maximum cooling capacity of 14.59 kW at -30/32 ºC R449A, the unit presents superb thermodynamic properties, and first-rate energetic efficiency, yielding minimal energy losses in comparison to conventional condensing units. The unit is powered by a 380-415-volt 50 hertz 3-phase power supply and is designed to be used with HFC refrigerants R404A, R448A and R449A. Our iCOOL series is a global reference for multi-refrigerant inverter units which do not require complex installation and maintenance.

Technical-Brochure-iCOOL-EN-ND22-08.01

Compare

Add to wishlist

Artikelnummer: Area-iCOOL-17D MP Categorie: Aggregaten Tags: inverter, Silence unit, silent

Beschrijving

Inverter condensing unit Area iCOOL 17D MP

Product description

Technical Information

Equipped with two 630 mm diameter fans and with a total weight amounting to 460 kg, the Area iCOOL 17D MP condensing unit is capable of a powerful air flow rate of 12,600 m3/h. These characteristics make it an excellent choice for large-scale installations requiring robust horsepower. Measuring 879 mm in width, 1528 mm in length, and 1488 mm in height, the unit is designed to be a highly performing component with great versatility for different types of demanding installations. The unit is furnished with a liquid receiver tank of 15 dm^3,1 3/8” and 7/8” suction and liquid connections, is operative with FV32S oil and compatible with compressor models C-SCVN603L0J and C-SCN603L8H. One of the staple characteristics of the Area iCOOL 17D MP is its reduced noise levels at only 44db, thanks to the acoustic panels installed on all sides of the compressor compartment. The Inverter condensing unit Area iCOOL 17D MP is certified with the highest European and global safety standards (CE, REACH, RoH and TUV), complies with the ECODESIGN label for sustainable design, and is operative with multiple refrigerants (R404A, R448A, R449A).

iCOOL 17D MP characteristics and advantages

Easy installation and maintenance.
Capable of operating under highly-demanding ambient temperature conditions.
Maximum cooling capacity of 59 kW at -10/32 ºC R449A.
Total weight of 460
Equipped with two 630 mm diameter fans.
Powerful air flow rate of 12,600 m3/h.
Liquid receiver tank with a 15 dm³capacity, a 1 3/8’’ suction connection and a 7/8’’ liquid connection.
Compatible with compressor models C-SCVN603L0J and C-SCN603L8H.
Compatible with FV32S
Designed with Inverter technology, with lower energy losses in comparison to traditional condensing units.
Reduced noise level at only 44 dB.
Acoustic insulation on all sides of the compressor compartment.
Compliance with ECODESIGN standard.
Validated by the highest European and global safety certifications (CE, REACH, RoH and TUV)
Compatible with refrigerants R404A, R448A and R449A.

Technical-Brochure-iCOOL-EN-ND22-08.01

Aanvullende informatie

Power supply	380/415 V-50 Hz-3 ph
Capacity	capacity at -30/32°C R449a = 14.59 kW
Weight	460 kg

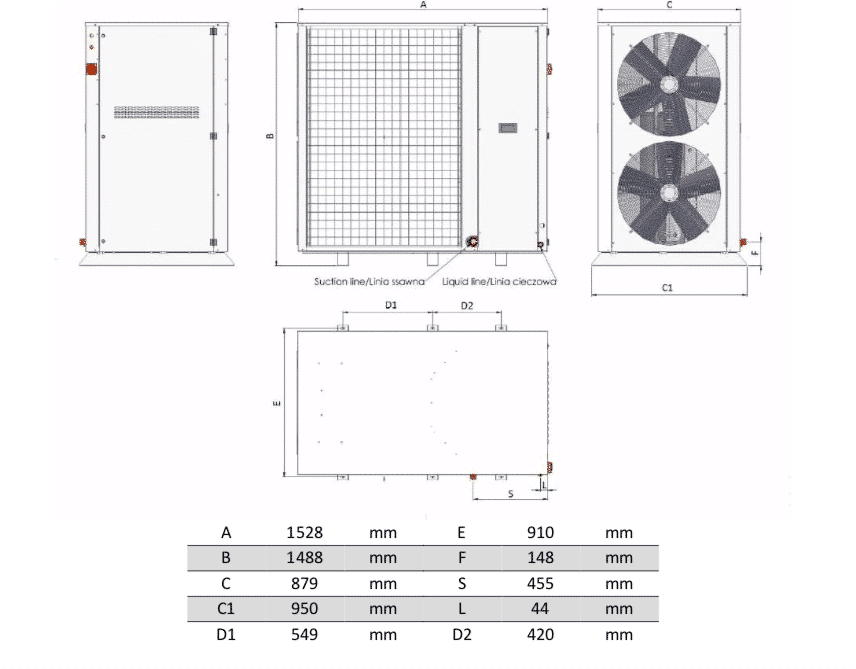

width	879 mm
length	1528 mm
height	1488 mm
Suction connection	35 mm
Liquid connection	22 mm
Suitable compressor model	C-SCVN603L0J, C-SCN603L8H
Type of oil	FV32S
Air flow	12600 m3/h
MCC	24.6/17.3 A
Receiver volume	15 dm3
Number x Diameter of fan	2 x 630 mm
Refrigerant	R404A, R448A, R449A,
Certificates	CE, REACH, RoHS, TUV
Technology	Inverter
