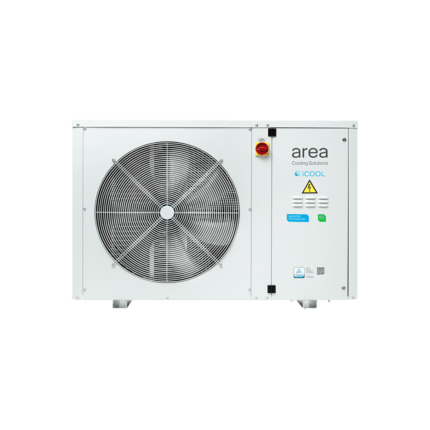

The hefty and robust dimensions of the SILENT Area SAPTXSs 18 condensing unit make it an excellent accessory for medium to large-scale refrigeration systems requiring a powerful cooling capacity and secure reliability. Weighing a total of 310 kg, and measuring 461 mm in width, 1520 mm in length and 1493 mm in height, the unit is furnished. with two 630 mm fans, capable of a vigorous air flow rate of up to 11,140 m3/h. This air flow capacity is entirely adjustable by virtue of a speed regulator provided with the unit, conceived for maximum versatility and energetic efficiency. With a suction connection diameter of 1 1/8″, and a liquid connector of 5/8″, the unit’s liquid receiver tank has a capacity of 15.0 dm3, suitable for highly demanding installations. In addition, liquid receiver and liquid connectors comprise a shut-off valve for increased security, efficiency and precision. The Area SAPTXSs 18 silent condensing unit is meant to be operated with the compressor model C-SBN303H8G SG and with FV68S refrigerant oil. With regard to refrigerant gas compatibility, the Area SAPTXSs 18 may be filled with the following HFC blends: R134a, R404A, R448A, R449A and R513A. Operating this condensing unit with any other unspecified refrigerants will not only cause permanent damages, it will also void the warranty, and should be avoided at all times. The SILENT Area SAPTXSs 18 is certified with the highest European and global safety standards (CE, REACH, RoH and TUV), complies with the ECODESIGN label for sustainability, and features minimal sound levels at only 44 db, made possible by acoustic panels enclosing the unit’s compressor compartment.

Condensing unit silent Area SAPTXSs 18 characteristics and advantages

• Easy installation and maintenance.
• Capable of operating under all types of climates.
• Maximum cooling capacity of 16.7 kW at -5/32 ºC R449A
• Total weight of 310 kg.
• Equipped with two 630 mm diameter fans.
• Vigorous air flow rate of 11,140 m3/h.
• Liquid receiver tank with a 15.0 dm³ capacity, a 1 1/8’’ suction connection and a 5/8’’ liquid connection.
• Compatible with compressor model C-SBN453H8G SG.
• Compatible with FV68S refrigerant oil.
• Minimal noise levels at only 44 dB.
• Acoustic insulation installed on all sides of the compressor.
• Compliance with ECODESIGN standard for sustainability.
• Validated by the highest European and global safety certifications (CE, REACH, RoH and TUV)
• Compatibility with multiple refrigerants for increased versatility: R134a, R404A, R448A, R449A and R513A
