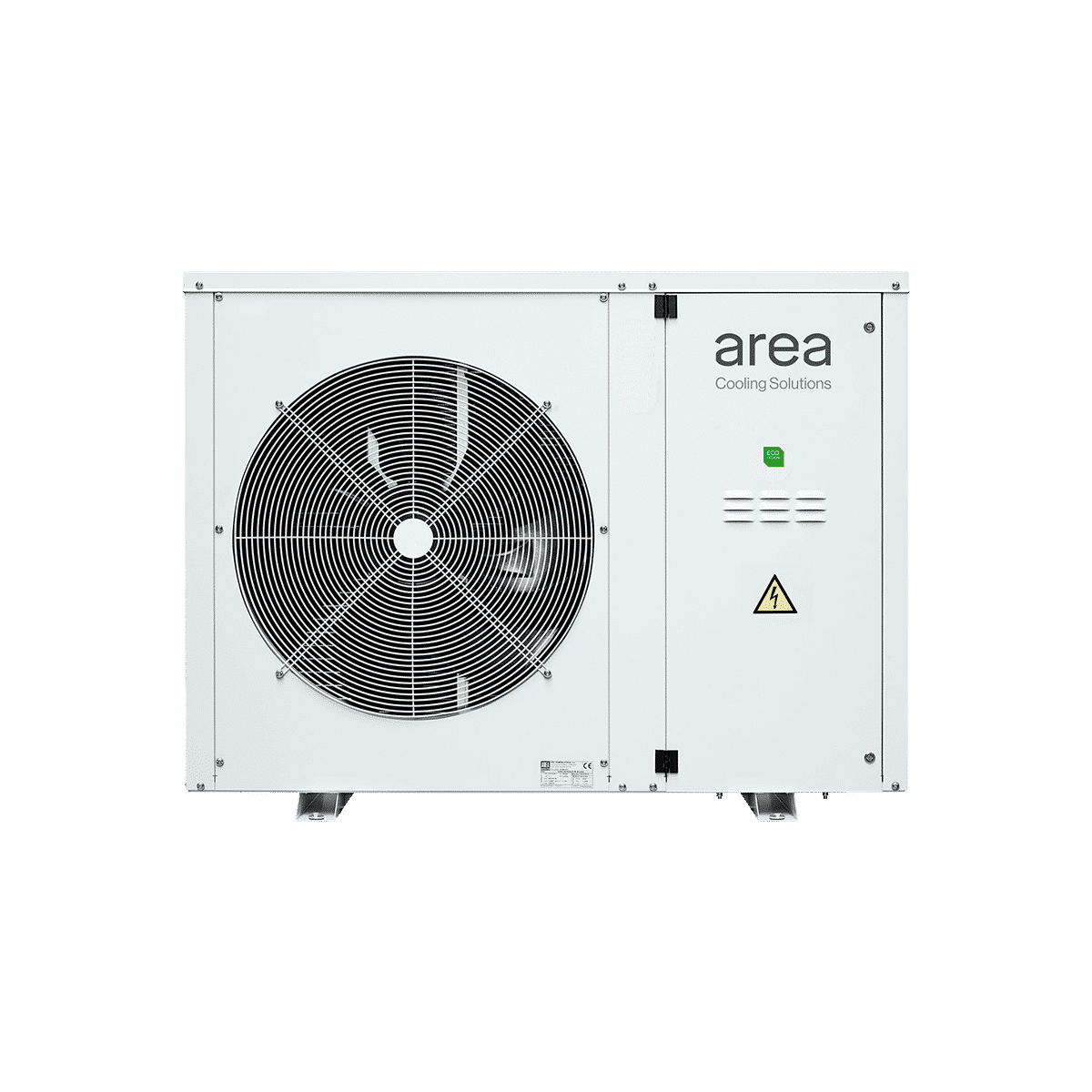

Condensing unit SAPTXSs-5 MP (G2)

Name: Condensing unit SAPTXSs-5 MP (G2)
SKU: Area-SAPTXSs-5 MP

Condensing unit silent Area SAPTXSs 5 MP

The SILENT Area SAPTXSs 5 MP is condensing unit intended for cold room systems such as refrigerated warehouses, low-temperature depositories, refrigeration cabinets, and liquid coolers, among other installations. With a cooling capacity of 4.5 kW at -30/32 ºC R449A and air flow rate of 5,848 m3/h, its thermodynamic properties and energetic efficiency make it an ideal condensing unit apt for medium-scale commercial and industrial applications. Designed and manufactured by, Area Cooling in the EU with a commitment to uphold the highest quality standards. The SILENT Area SAPTXSs 5 MP is 380-415 volt 50 hertz 3-phase power supplied and is operational with three different types of HFC refrigerant blends, with the aim of providing users with maximum versatility (R404A, R448A and R449A). In comparison with loud conventional condensing units, the SILENT condensing units manufactured by Area Cooling feature diminished sound levels due to the acoustically insulated housing of the compressor compartment. With noise levels at only 41 dB, the SILENT Area SAPTXSs 5 MP is one of the most silent units on the market.

Technical-Brochure-SILENT-pl-en-ND19 NEDERLANDS

Technical-Brochure-SILENT-pl-en-ND19

Compare

Add to wishlist

Artikelnummer: Area-SAPTXSs-5 MP Categorie: Aggregaten Tags: Silence unit, silent

Beschrijving

Condensing unit silent Area SAPTXSs 5 MP

Product description

Condensing unit silent Area SAPTXSs 5 MP technical information

The SILENT Area SAPTXSs 5 MP is a low temperature condensing unit conceived for high performance. Devised for use with scroll Panasonic compressor C-SBN453L8A and FV32S oil, the unit is versatile for different types of cold room systems and refrigeration installations. With a total weight amounting to 160 kg, and dimensions measuring 435mm in width, 1280 mm in length and 963mm in height, the unit is equipped with one 630 mm fan. The fan is capable of providing a hearty air flow rate of 5,848 m3/h. Moreover, the air flow is modulated by means of a speed regulator to provide users with the highest operational flexibility and energetic efficiency. The unit’s suction connection is 7/8″, and its liquid connection is 1/2″, while its liquid receiver with a volume of to 7.1 dm3. In addition to its reduced noise levels at only 41 dB thanks to the soundproof housing of the compressor compartment, it is worth noting that one of the essential amenities of the SILENT Area SAPTXSs 5 MP is its multi-refrigerant compatibility with three different HFC refrigerant blends: R404A, R448A and R449A. The use of any other unspecified refrigerant may cause irreversible damages to the system and shall void its warranty. As with all the products produced by Area Cooling, the SILENT Area SAPTXSs 5 MP is endorsed by the highest European and global security standards (CE, REACH, RoH and TUV) and is in compliance with the ECODESIGN certification for sustainable design.

Area SAPTXSs 5 MP characteristics and advantages

Easy installation and maintenance.
Capable of operating under highly-demanding ambient temperature conditions.
Cooling capacity of 4.5 kW at -5/32 ºC R449A
Total weight of 160 kg.
Furnished with one 630 mm diameter fan.
Vigorous air flow rate of 5,848 m3/h, adjustable by means of a speed regulator.
Liquid receiver with a 7.1 dm³capacity,
7/8’’ suction connection and a 1/2’’ liquid connection.
Liquid line furnished with filter drier, sight glass with moisture indicator and shut-off valve.
Compatible with scroll Panasonic compressor model C-SBN453L8A.
Compatible with FV32S oil.
Noise levels at only 41 dB.
Soundproof housing enclosing the compressor compartment.
Compliance with the ECODESIGN standard for sustainability.
Validated by the highest European and global safety certifications (CE, REACH, RoH and TUV)
Compatibility with different types of refrigerants for maximum operational versatility: R404A, R448A and R449A.

Technical-Brochure-SILENT-pl-en-ND19

Technical-Brochure-SILENT-pl-en-ND19 NEDERLANDS

Aanvullende informatie

Power supply	380/415 V-50 Hz-3 ph
Capacity	capacity at -5/32°C R449a = 4.5 kW
Weight	160 kg
width	510 mm
length	1280 mm
height	965 mm
Suction connection	22 mm
Liquid connection	12 mm
Suitable compressor model	C-SBN453L8A
Type of oil	FV32S
Air flow	5848 m3/h
MCC	8,54 A
Receiver volume	7,1 dm3
Number x Diameter of fan	1×630 mm
Refrigerant	R404A, R448A, R449A,
Certificates	CE, REACH, RoHS, TUV
